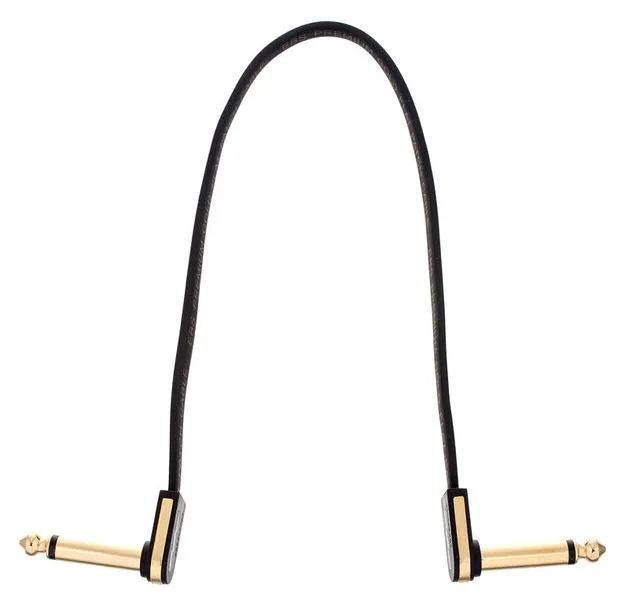

EBS PG-28 Premium Gold Flat Patch Cables feature contact housing made of 24 carat gold plated die cast welded zinc, as well as 24 carat gold plated 1/4" contacts.
These ultra compact and double shielded flat patch cables offer very low resistance and capacitance to keep your sound uncolored without signal loss.
EBS Premium Gold Flat Patch Cable Features:
- Die cast welded zinc contact housing
- Gold plated connectors and housing
- Copper conductors
- Super compact angled contacts
- Extremely well shielded
- Very low resistance
EBS Premium Gold Flat Patch Cable Specifications:
- Contact House: 24 carat gold plated
- Double Shield: Conductive PVC and copper shield protect effectively from both LF and HF interferences
- Conductor: Flexible copper conductor low voltage audio signal system
- Operating Temperature: -15ºC to 70°C
- Outer Insulation: PVC (Polyvinyl Chloride)
- Signal Copper Cores: 20 x 0.12 mm
- Signal Insulation: PE (polyethylene)
- Twisted Copper Shield: 45 x 0.12 mm
- Capacitance Cond./Shield: < 10 pF/decimeters
- Conductor Resistance: < 10 mOhm/decimeters
- Dimensions: 5.3 x 2.5 mm (rectangular cable), 22.0 x 11.5 x 5.0 mm (contact house)
The premium gold flat patch cable is an original design by EBS, and the luxury version of the world renowned PCF cable.
