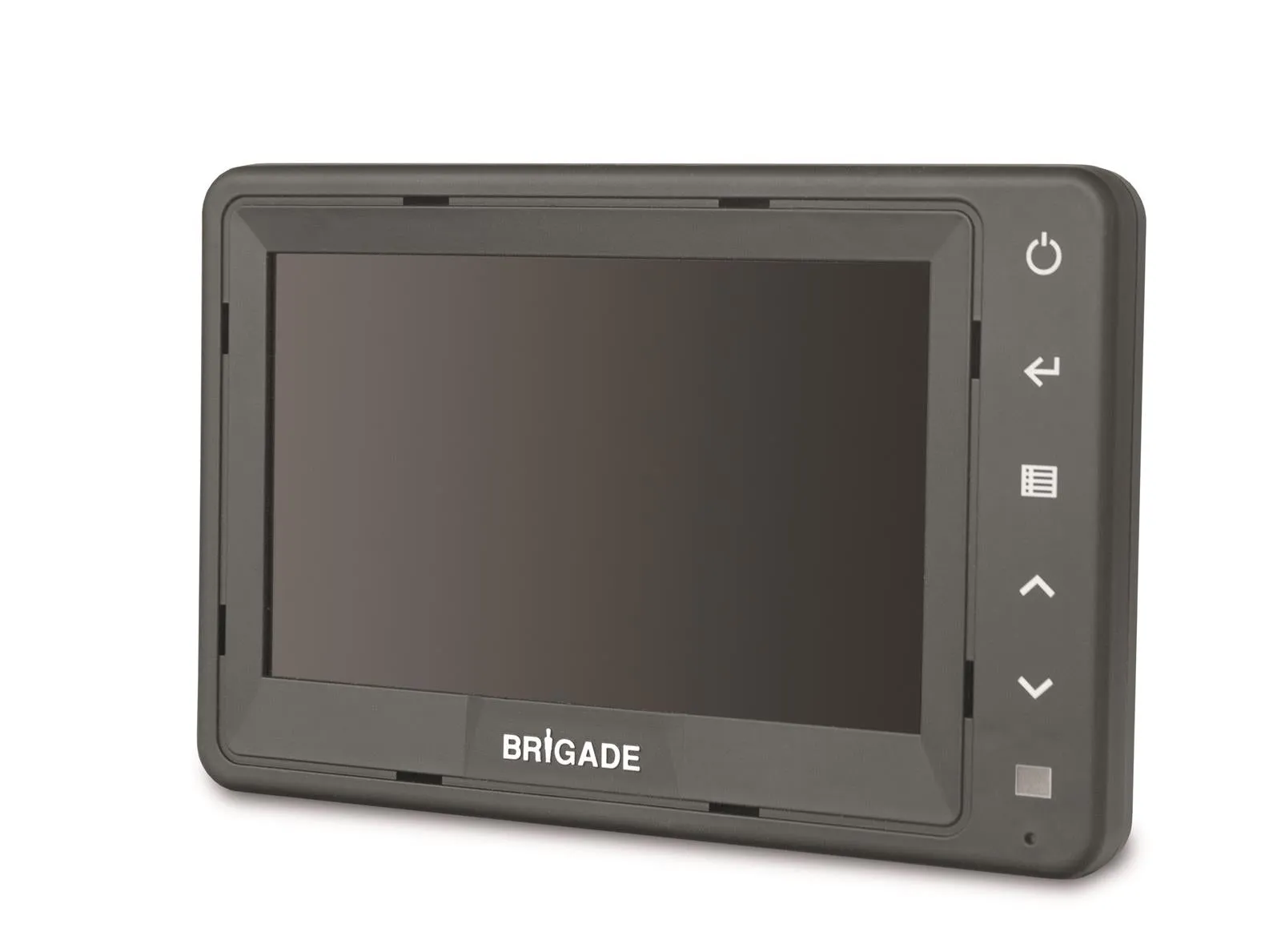

The Brigade Electronics VBV-750DM is a compact, mid-range vehicle backup camera monitor, designed specifically for situations where cab space is limited. This monitor is perfect for enhancing safety in Class 8 trucks and includes a 5-pin input for easy connection to the VBV-710C shutter camera.
Features:
- 3 camera inputs
- 3 Auto-triggers
- Mirror/Normal switching from menu
- On-screen distance markers
- ‘Button lock’ anti-tamper feature
- Audio capabilities
- Sun shield included
- Auto-dimmer function
- Multi-lingual menus
- Auto-switching between PAL/NTSC
Picture Quality:
- LED backlighting with a lifespan of 20,000 hours
- Anti-glare screen
- Resolution: 800 x 480
- Contrast ratio: 500:1
- Brightness: 350 cd/m²
- Viewing angles: Side 70° x Top 50° x Bottom 70°
Durability & Standards:
- Mechanical vibration resistance: 4G
- Mechanical shock resistance: 100G
- Operating temperature: -30 to 70°C / -4 to 158°F
- CE marked
- EMC approved: E
- HALT tested
Power:
- Power consumption: 11.5 watts
- Current: 0.95 amps
